SS-02Breathable surface drysuit

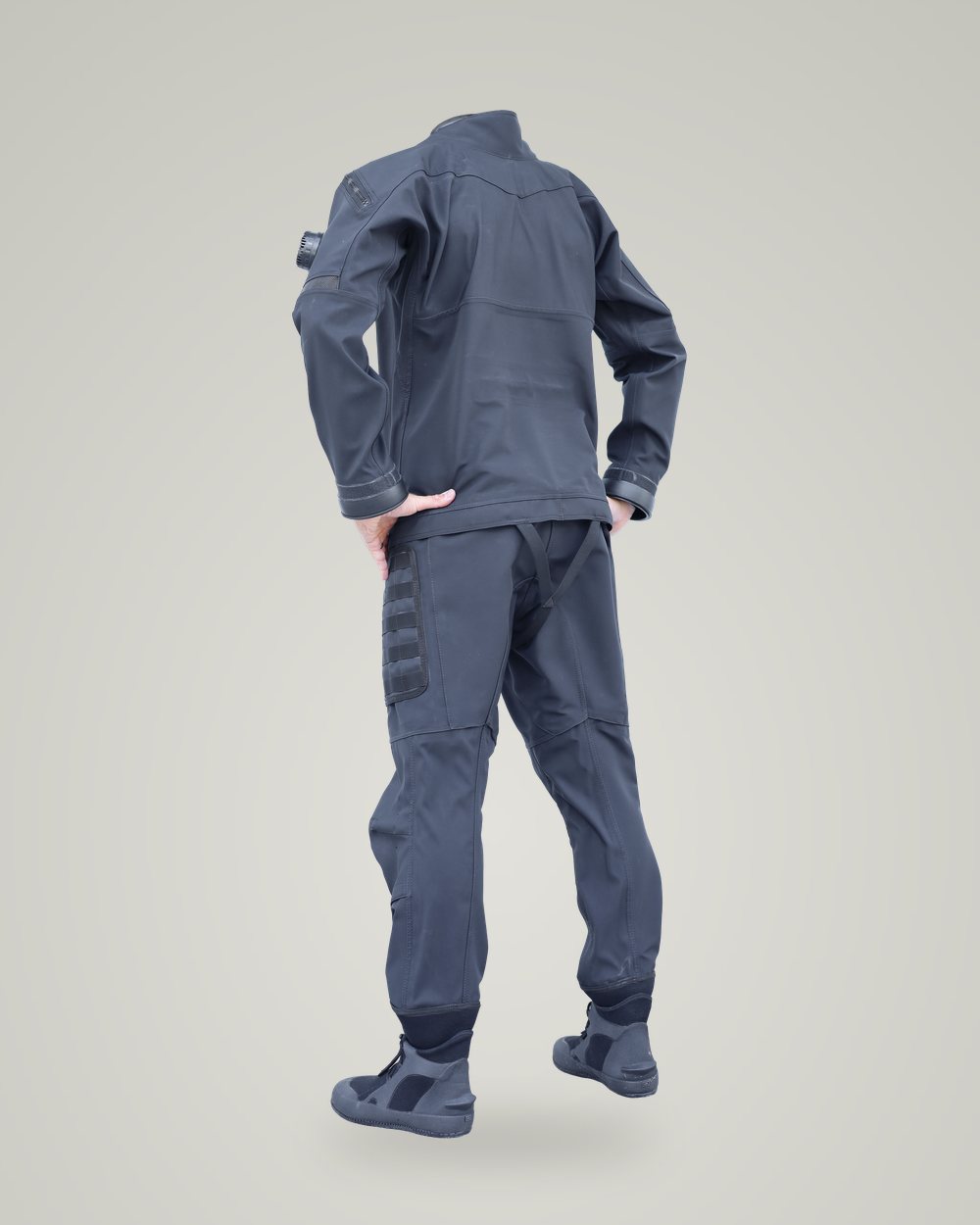

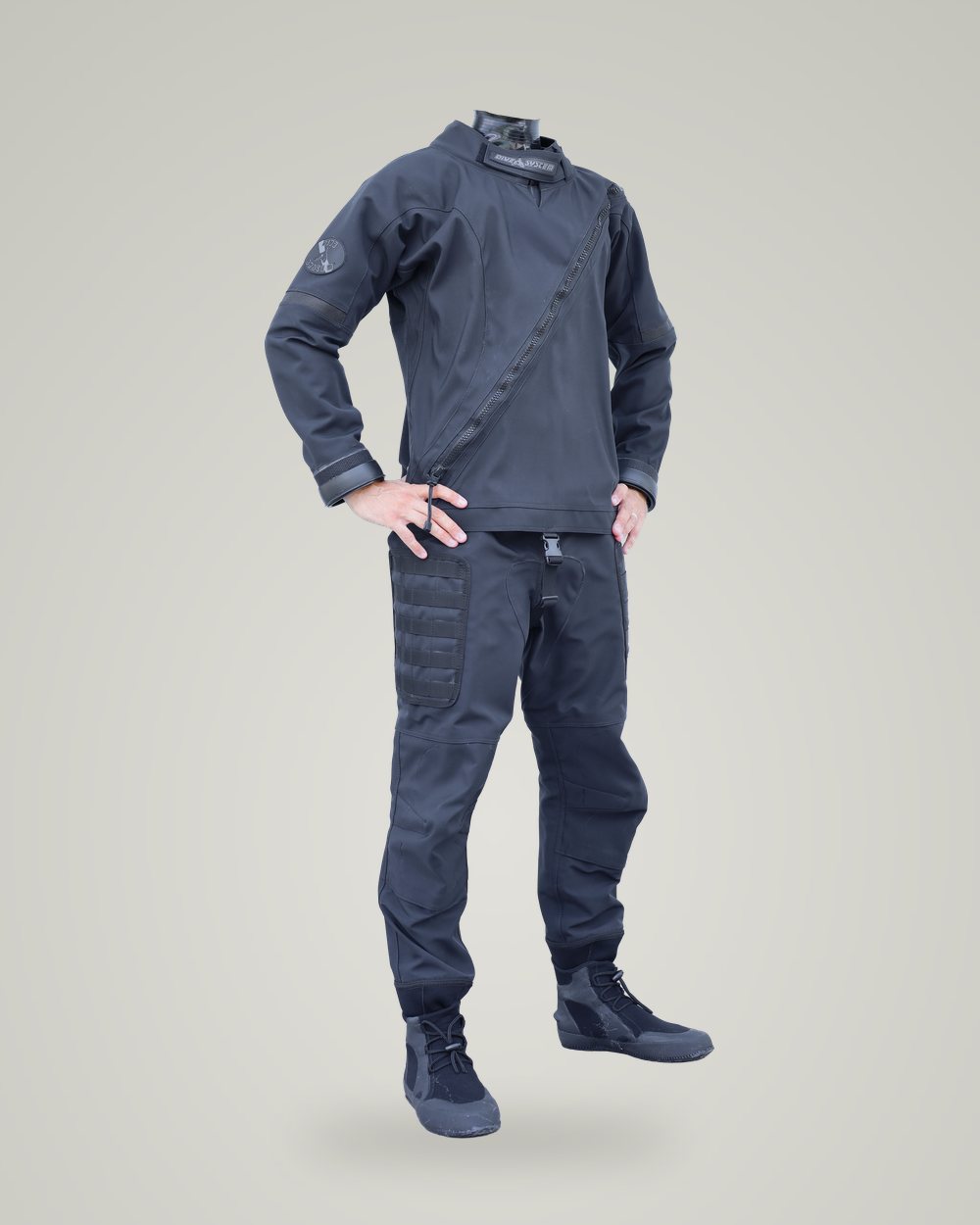

Surface Shield RECON

Breathable DS330 trilaminate, lightweight, sealed like a diving drysuit.

Created in collaboration with military units: a high-performance surface drysuit in breathable DS330 or NATO 4-1-4 trilaminate. Lightweight yet extremely durable, sealed with Aquasure®, with preformed knees and diamond underarm gusset; protections and MOLLE are added to the requirement.

01Material: Breathable DS330 trilaminate (NATO 4-1-4 or fire retardant on request)
02Sealing: Inside, with Aquasure® polymer
03Entrance: Technopolymer dry zipper, front diagonal entry, protected by a Cordura® flap or by a protection zipper
04Neck: Neck protector with Velcro strap

Origin

Made in ItalyDesigned, manufactured and tested by DiveSystem

Colours

RangerNATO greenNavy blueBlack stealthRed

Standard

EN 14605 · EN 13034 · EN 14126 · PPE Cat. III

Request specifications Built to specification

Construction details

Surface Shield RECON

Preformed knees

The “pence” preform the knee and follow its movement even at full flexion. Originally designed for climbing rung ladders during boarding.

Diamond underarm gusset

Removes the seam running under the armpit: less friction and fewer stress points, free arm movement.

Neck protector

Protects the neck and the neck seal from load-bearing gear and the tactical vest, reducing abrasion and tears. Holds the neoprene hood in position.

MOLLE system in Hypalon

MOLLE panels on the legs, with waterproof Hypalon webbings. Extra panels in other positions on request.

MOLLE Safety Lock System

MOLLE pockets and accessories fixed firmly and safely to the suit, without stiffening the garment.

L-07 Built to the unit’s specification We make every component in-house: any product can be modified to a tender specification or an operational requirement, small batches included. Built to specification →

Technical data

Surface Shield RECON

Material	Breathable DS330 trilaminate (NATO 4-1-4 or fire retardant on request)
Sealing	Inside, with Aquasure® polymer
Entrance	Technopolymer dry zipper, front diagonal entry, protected by a Cordura® flap or by a protection zipper
Neck	Neck protector with Velcro strap
Neck and wrists	Neoprene (latex or silicone on request)
Socks	HD neoprene with Supratex® or trilaminate
Reinforcements	Cordura® pads on request
Knee pads	On request: double layer neoprene with Kevlar®, Supratex® or Duratex outer layer, integrated in the knee
Standard	EN 14605 · EN 13034 · EN 14126 · PPE Cat. III

Included

Drysuit bag
Adjustable internal suspenders

On request

Speleo boots
Pockets
MOLLE system
Removable neoprene knee pads
Heavy duty knee protection
Relief zipper
Valve ports
Hideable high visibility stripes
Oral inflator
Pee valve
Fire retardant version

Mission profiles

I-03 · Amphibious operations and reconnaissance

Available in standard sizes or made to measure. Features, colours and position of the DiveSystem logo can be modified as required by the contract specifications.
