AV-02DS330 surface drysuit

Surface Shield PILOT

Breathable DS330 trilaminate, Cordura® reinforcements on knees and seat.

Breathable drysuit for surface activities. DS330 trilaminate with Cordura® reinforcements on knees and seat, neck protector with Velcro strap and front diagonal zipper protected by a flap.

01Material: Breathable DS330 trilaminate

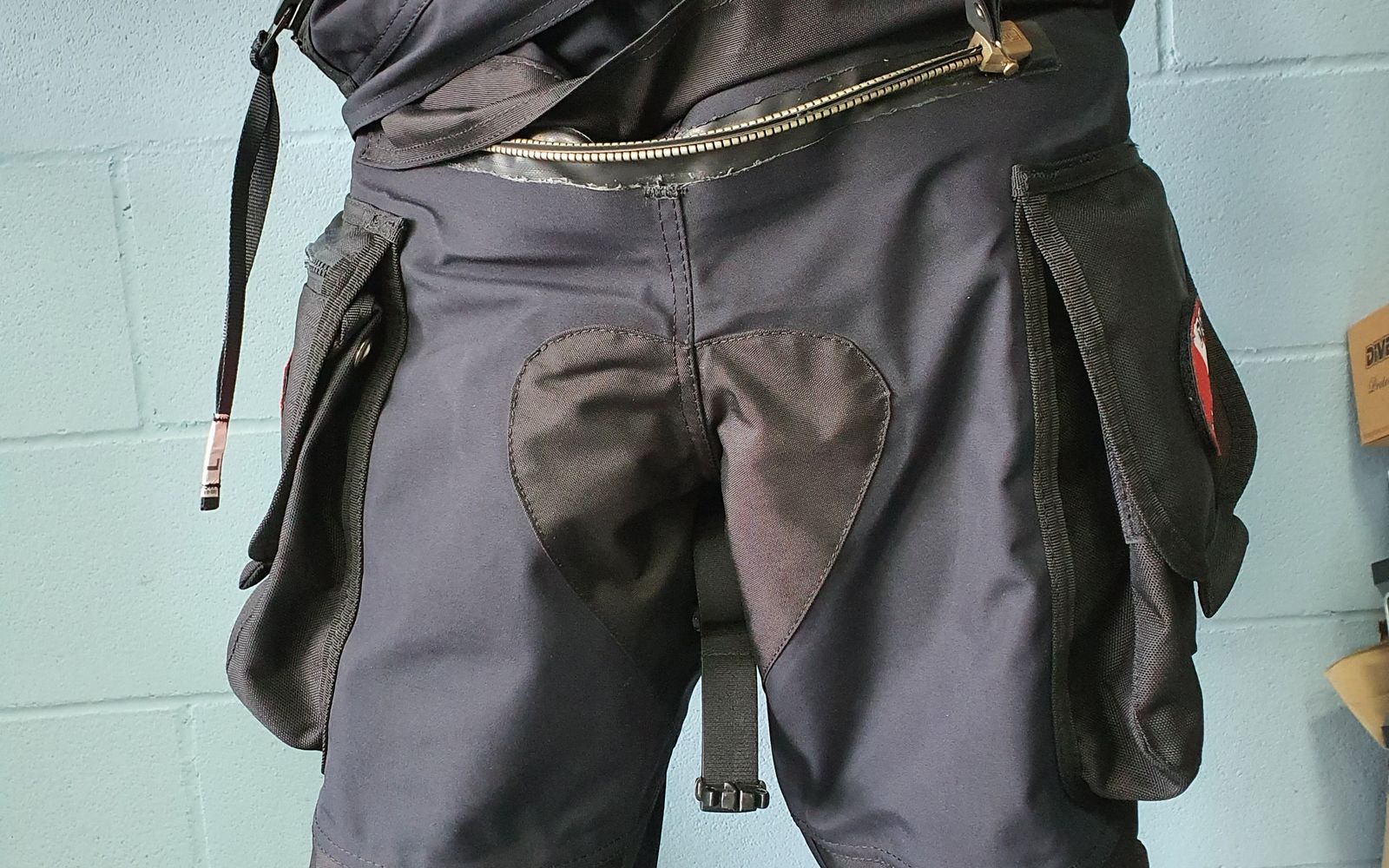

02Reinforcements: Cordura® on knees and seat
03Entrance: Technopolymer dry zipper, front diagonal entry, protected by a Cordura® flap
04Neck: Neck protector with Velcro strap

Origin

Made in ItalyDesigned, manufactured and tested by DiveSystem

Standard

EN 14605 · EN 13034 · EN 14126 · PPE Cat. III · EN 14225 with valves

Request specifications Built to specification

Construction details

Surface Shield PILOT

Neck protector

Protects the neck and the neck seal from load-bearing gear and the tactical vest, reducing abrasion and tears. Holds the neoprene hood in position.

Configurable valve positions

Inflation valve on the leg (for the drysuit inflation cylinder) or on the chest; exhaust valve on the shoulder or on the forearm.

L-07 Built to the unit’s specification We make every component in-house: any product can be modified to a tender specification or an operational requirement, small batches included. Built to specification →

Technical data

Surface Shield PILOT

Material	Breathable DS330 trilaminate
Reinforcements	Cordura® on knees and seat
Entrance	Technopolymer dry zipper, front diagonal entry, protected by a Cordura® flap
Neck	Neck protector with Velcro strap
Sealing	Internal sealing tape (Aquasure® on request)
Neck and wrists	Neoprene (latex or silicone on request)
Socks	HD neoprene with Supratex® or trilaminate
Standard	EN 14605 · EN 13034 · EN 14126 · PPE Cat. III · EN 14225 with valves

Included

Drysuit bag
Adjustable internal suspenders

On request

Integrated hood
Speleo boots
Pockets
MOLLE system
Heavy duty knee protection
Relief zipper
High visibility stripes
Oral inflator

Available in standard sizes or made to measure. Features, colours and position of the DiveSystem logo can be modified as required by the contract specifications.

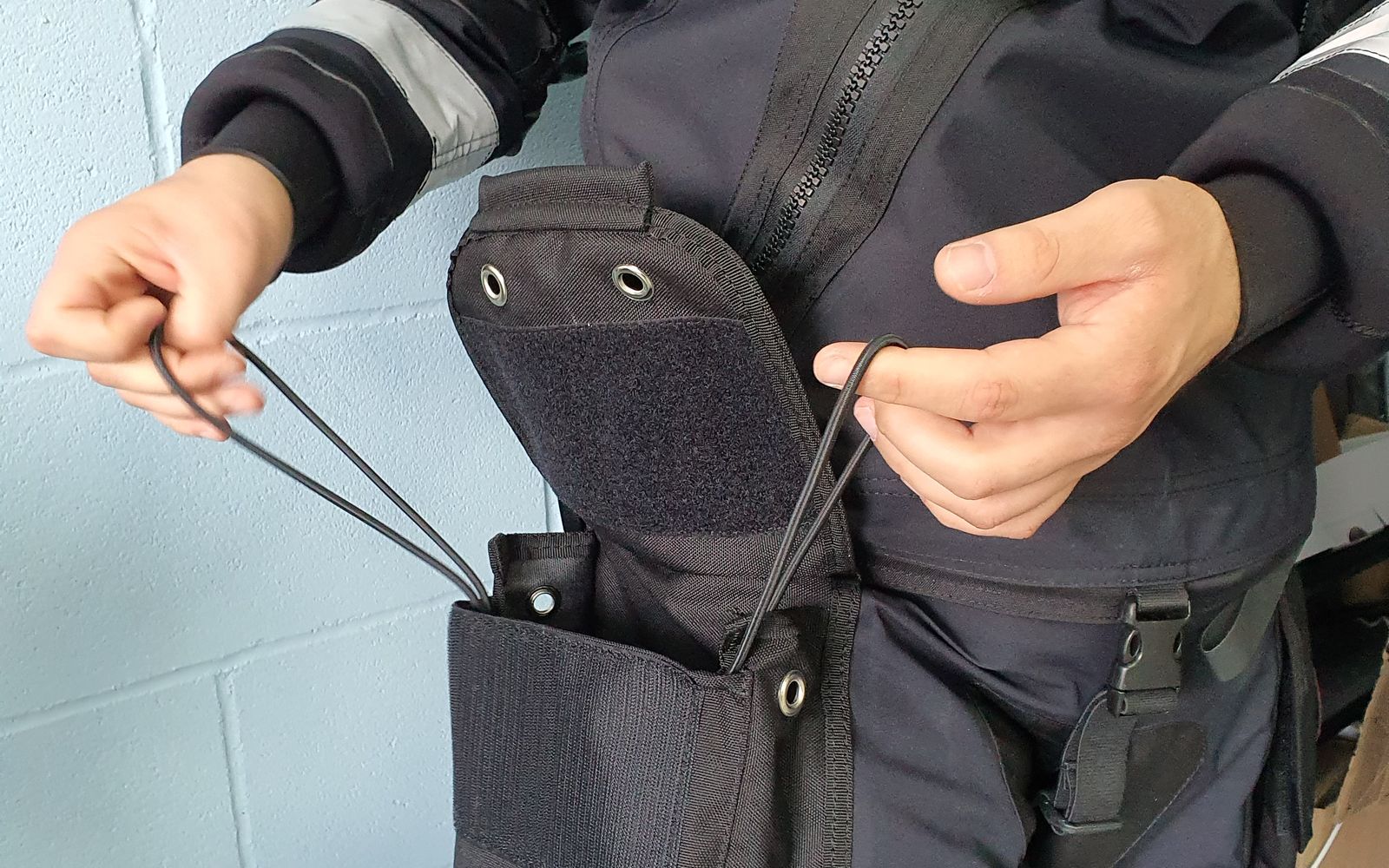

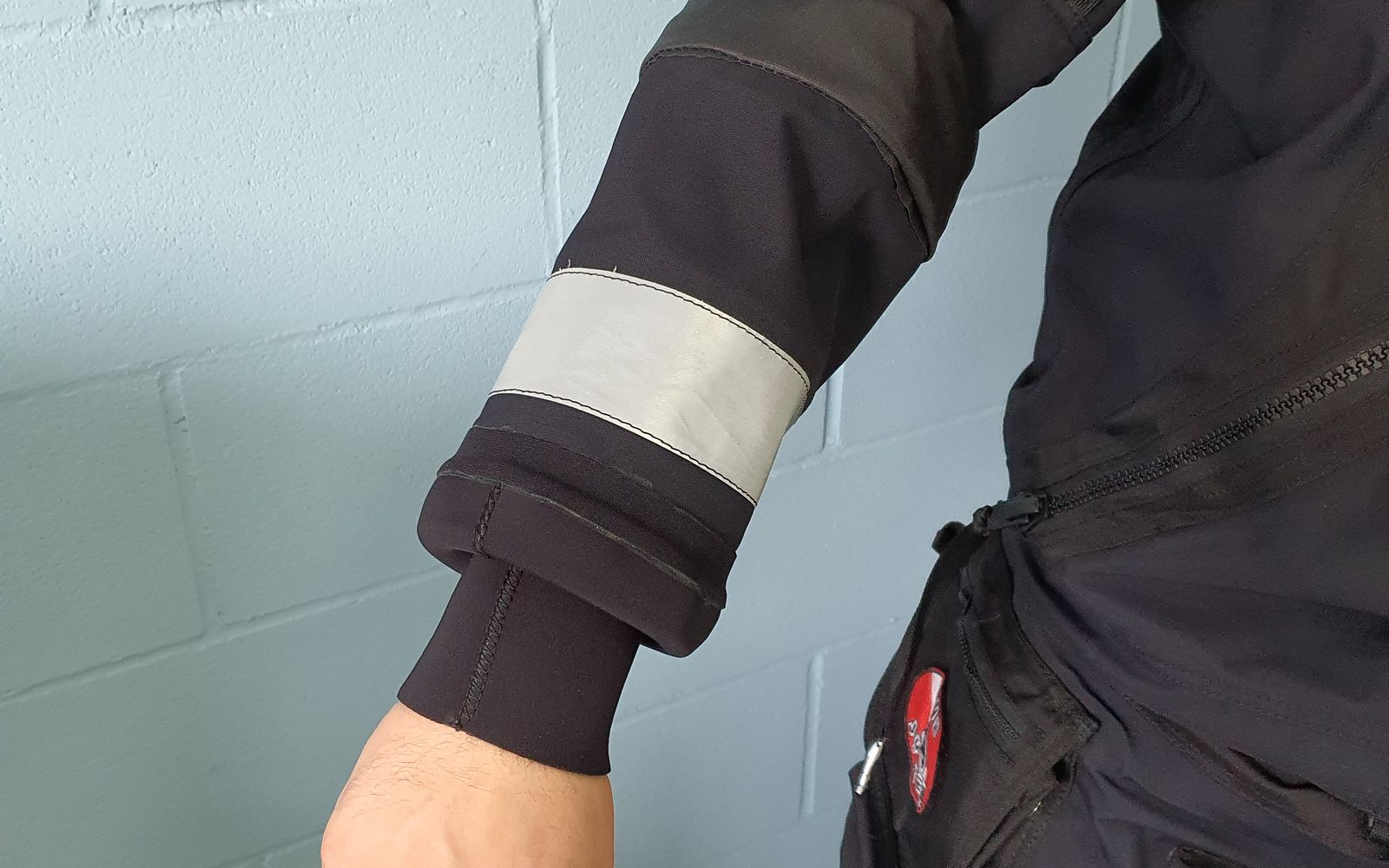

In use
